Liquid Filling Machine 1000-5000ML
High-Capacity Liquid Filling Machine (1000-5000ML) | PACKMACHINE Bangalore: Ideal for Diverse Applications
Introducing the Liquid Filling Machine (1000-5000ML) from PACKMACHINE, the forefront manufacturer in Bangalore. Engineered to accommodate liquid volumes ranging from 1000 to 5000 milliliters, this high-capacity machine ensures efficient and precise filling operations. Built with quality materials and advanced technology, it's an ideal solution for industries requiring large-volume liquid packaging, such as pharmaceuticals, chemicals, beverages, and cosmetics. Trust PACKMACHINE for reliable liquid filling equipment designed to enhance productivity and streamline your manufacturing processes effectively.
Here is a list about our pneumatic filling machine for liquid with a single head, suitable for all liquid, widely used in fields of daily chemistry, food and beverage, pharmacy, and so on. Note: You should prepare the air compressor for yourself.
NO DRIPPING FILLING & 1000-5000ML: Pneumatic filling with the delicate filling device, including an anti-drip nozzle, the delicate conveying pipes, and the non-return valve, has high filling precision that can be controlled within 1%. Capacity: 1000-5000ml. Filling speed: 0-30 bottles/min.
ARBITRARILY CONTROLLABLE PROCESS: The whole filling process is arbitrarily controllable, including the cylinder speed, filling speed, and filling volume. The premium gas cylinder offers large power and stable air pressure. Air pressure: 0.4-0.6MPa.
STAINLESS STEEL CONSTRUCTION: The pneumatic liquid filling machine is made of stainless steel, resistant to corrosion, rust, acid, and alkali. The rotary valve and filling nozzle are removable for easy clean, and replacement. The Teflon piston has a good sealing performance.
EASY OPERATION & HIGH EFFICIENCY: Two models: automatic operation or pedal control operation. The cosmetic filling machine adopts an air pressure gauge to monitor air pressure change accurately. This product filling machine needs to work with an air compressor(not offered).
VARIOUS APPLICATION: This automatic filling machine is widely used in pharmaceutical, cosmetic, food and beverage, pesticides, daily chemistry, and special industries, suitable for low-viscosity fluid and liquid filling.
Features Of Liquid Filling Machine 1000-5000ML
Solid Frame & 5000ml
Large Capacity: 1000-5000ml. The material of this liquid filler machine is stainless steel. Thickened base and PTFE plunger have a high quality. Removable buckles make the lotion filling machine easy to maintain.

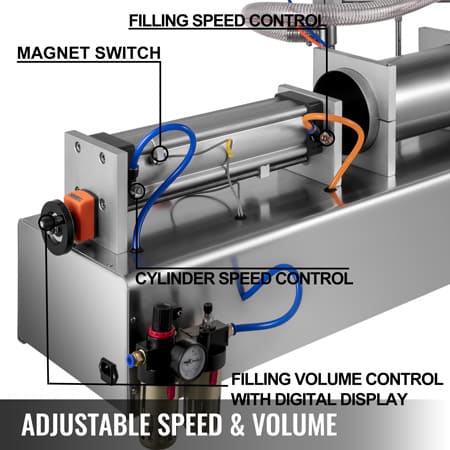

Adjustable Speed & Volume
The air cylinder supports the filling process well. It is easy to operate. Filling quantity can be adjusted by a hand switch with a digital display, making the adjustment more convenient and accurate.
Anti-drip Nozzle
The outlet nozzle can be easily removed and replaced. The filling process is efficient and accurate with an anti-drip nozzle, adjusted up and down for better filing height. It is not easily plugged.
Delicate & Durable
The delicate one-way check valve features an excellent non-return performance, easy to dismantle. The inner part is made of Teflon material. The premium conveying pipe is durable for long service life.
Air Pressure Gauge & Switch
With an air pressure gauge, the liquid filler works well with an air compressor(not offered). It supports both auto operation and point control operated through a pedal. It has an emergency stop for safe cut-out.
Wide Application
The bottle filler machine is widely used in the food and beverage, cosmetics, personal care, agricultural, pharmaceutical, and chemical fields, ideal for low viscosity fluid and liquid filling.
Specifications of Liquid Filling Machine 1000-5000ML
| Filling Volume | 1000-5000 ml |
| Applicable Pressure | 0.4-0.6MPA |
| Accurate | ≤ ±1 % |
| Material | Stainless Steel(304, 201) |
| Operation | Semi-Automatic/Automatic) |
| Filling Head | Single head |
| Filling Speed | 0-30 bottles/min(it depends) |
| Cylinder Size | 3.15 x 12.6 inch/80x320 mm |
| Filling Nozzle Diameter | 0.79 inch/20 mm |
| Power Voltage | 220V/50HZ |
Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.
